Precise Total Volume Pipetting Technology
https://www.livobottech.com/precise-total-volume-pipetting-technology.html
#gene #sequencing #techniques
1. Revolutionary Tip Technology: Pipetting + X Functions
Highly Reliable Multi-Channel Precision Pipetting Module
（10² nl、μl、ml Pipetting + Independent Pressure Source + Plate Sealing Film)
This technology supports automated pipetting across multiple volume ranges while integrating independent pressure control and plate sealing functions.
2. To... morePrecise Total Volume Pipetting Technology
https://www.livobottech.com/precise-total-volume-pipetting-technology.html
#gene #sequencing #techniques
1. Revolutionary Tip Technology: Pipetting + X Functions
Highly Reliable Multi-Channel Precision Pipetting Module
（10² nl、μl、ml Pipetting + Independent Pressure Source + Plate Sealing Film)
This technology supports automated pipetting across multiple volume ranges while integrating independent pressure control and plate sealing functions.
2. Touch and Go Precision Pipetting Technology: Steel Needle Spotting
（101~102 nl)
3. Tip Free Ultra Low Volume Droplet Generation Technology: Based on Ultrasonic Technology
（100~102 nl, Adapts to Samples of Various Viscosities）
Adaptive Cylindrical Ultrasonic Technology
https://www.livobottech.com/adaptive-cylindrical-ultrasonic-technology.html
#next #generation #sequencing #technologies

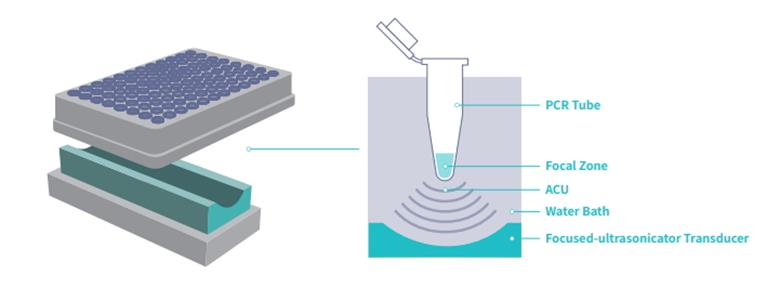

The LivoBot focused-ultrasonicator utilizes non-contact ACU™ (Adaptive Cylindrical Ultrasonic) focusing technology. This technology uses a custom-developed cylindrical ultrasonic transducer to geometrically focus high-frequency acoustic energy with a wavelength of approximately several millimeters onto the sample region, generating ... moreAdaptive Cylindrical Ultrasonic Technology
https://www.livobottech.com/adaptive-cylindrical-ultrasonic-technology.html
#next #generation #sequencing #technologies
The LivoBot focused-ultrasonicator utilizes non-contact ACU™ (Adaptive Cylindrical Ultrasonic) focusing technology. This technology uses a custom-developed cylindrical ultrasonic transducer to geometrically focus high-frequency acoustic energy with a wavelength of approximately several millimeters onto the sample region, generating high-intensity acoustic energy pulses. By adjusting parameters such as peak power, pulse duration, and duty cycle, the acoustic energy is controlled to induce cavitation effects within the sample container. The oscillation and collapse of these cavitation bubbles produce acoustic microstreaming, which generates powerful hydrodynamic shear stress in the sample, thereby achieving sample fragmentation.
Conventional ultrasound fragmentation devices often suffer from issues such as difficult energy control and excessive heating, which compromise sample processing quality. The ACU™ technology used in the EoSonics® FRAG series focused ultrasonicator overcomes these limitations by focusing acoustic energy, utilizing a low-temperature coupling fluid environment, and enabling precise positional control. With extremely low energy input, it achieves accurate sample shearing while avoiding over-processing and thermal damage. This provides an efficient, controllable, and stable environment for sample processing, effectively preserving the biological activity of samples.
Leveraging an advanced acoustic control algorithm, the system precisely regulates key parameters of the acoustic pulses including peak power, pulse duration, interval period, and duty cycle to modulate the output acoustic energy. This enables it to meet the precise energy and processing time requirements of different sample types and experimental applications, supporting a wide range of processing needs from gentle extraction to efficient fragmentation. During sample processing, the system continuously monitors acoustic parameters and automatically adjusts the acoustic output through a feedback mechanism, ensuring process stability and consistency. Even when sample properties or experimental conditions vary, it consistently delivers high-quality results.
Sequencing Automated Sample Preparation Solution
https://www.livobottech.com/sequencing-automated-sample-preparation-solution.html
#clinical #applications #of #next #generation #sequencing
Gene sequencing technology has moved beyond laboratory research and become a core engine for precision medicine, life sciences research and agricultural modernization. It supports precise early warning for tumor early screening, rapid infectious disease tracing, molecular breeding of superior crop varietie... moreSequencing Automated Sample Preparation Solution
https://www.livobottech.com/sequencing-automated-sample-preparation-solution.html
#clinical #applications #of #next #generation #sequencing
Gene sequencing technology has moved beyond laboratory research and become a core engine for precision medicine, life sciences research and agricultural modernization. It supports precise early warning for tumor early screening, rapid infectious disease tracing, molecular breeding of superior crop varieties, and root cause investigation of genetic disorders. With the accelerated adoption of NGS and the gradual application of third- and fourth-generation sequencing technologies, the global gene sequencing market continues to expand.
In the sample preparation stage of sequencing: from nucleic acid extraction, fragmentation, and end repair to adapter ligation, PCR amplification, product purification, size selection, hybrid capture, concentration quality control, and library pooling — every step directly determines the accuracy and reliability of subsequent sequencing data. Traditional manual operations bear challenges from high-throughput batch processing and frequent sample transfers across different instruments, introducing human errors, irregular library quality and cross-contamination that consumes precious samples; such cumbersome workflows severely impair the efficiency and quality of high-throughput sequencing.
To address the key challenges in the sample preparation stage of the gene sequencing workflow, LivoBot has launched its "Automated Platform for Sequencing Sample Preparation (NGS- APW Integrated Fragmentation- to- Library Solution)". With a fully automated, highly integrated product portfolio, this solution helps laboratories overcome the "first critical barrier" of gene sequencing — covering the entire sample preparation workflow from nucleic acid fragmentation to library preparation — delivering both accuracy and high efficiency.
1. Precise Sample Fragmentation
Nucleic acid fragmentation is a critical step in library construction. Uneven fragment sizes and base sequence bias directly affect the quality of sequencing data. LivoBot's EoSonics® FRAG Series Focused Ultrasonicator utilizes non-contact ACU™ (Adaptive Cylindrical Ultrasonic) focusing technology, using physical ultrasonic shearing to effectively overcome the drawbacks of traditional enzymatic fragmentation methods and closed consumable- based ultrasonication methods.
（1）Full high-throughput capability for nucleic acid fragmentation
（2）Single-row processing mode allowing different fragmentation parameters to be set per row
（3）Compatible with general consumables such as 8-tube strips and 96-well plates
（4）No frequent plate transfer required; samples can be directly loaded onto the instrument for fragmentation
（5）Optional dedicated consumables available, eliminating the centrifugation step
2. Automated Library Preparation

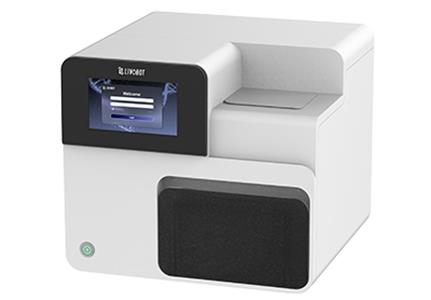

LivoBot's EosBot® Seq Series Fully Automated NGS Library Preparation System condenses the entire manual workflow into one instrument. It features a liftable magnetic stand for bead purification and size selection, and integrates a PCR module and concentration quantification module. This keeps samples on-deck for uninterrupted, contamination-free library prep, fully automating both construction and targeted capture.
（1）Library preparation, concentration QC, and normalization — all in one
（2）Externally sealed pipetting module for fast, accurate liquid transfer
（3）Full coverage of medium-to-high throughput, accommodating multiple experimental scales
（4）Diverse module configuration to meet all-scenario needs
3. Application Cases
(1) EoSonics® FRAG Nucleic Acid Fragmentation
The EoSonics® FRAG Series fragments FFPE nucleic acids for TSO500 library prep and sequencing, with results compared to the Illumina-recommended protocol.
Downsampled to equal data, LivoBot matched the reference protocol across all metrics, producing 200–300 bp genomic DNA fragments suitable for direct high-throughput sequencing or bisulfite conversion for methylation analysis.
(2) EosBot® Seq Series Automated Library Preparation
Using a NIPT hybridization capture library preparation kit, 25 μL of cfDNA was input. Libraries were constructed with the EosBot® Seq Series Fully Automated NGS Library Preparation System, and the results were compared with those from manual library preparation. The following results were obtained.
Automated library prep mean conc: 61.3 ng/μL; manual: 63.4 ng/μL (3% difference).
Automated hybrid capture mean conc: 35.7 ng/μL; manual: 40.5 ng/μL (11% difference).
Both stages meet customer requirements. LivoBot's automated workstation replaces manual handling, improves library uniformity, enhances accuracy, and significantly boosts clinical diagnostic efficiency for genetic diseases.
