https://www.savvyflowtech.com/products/angle-globe-valve/

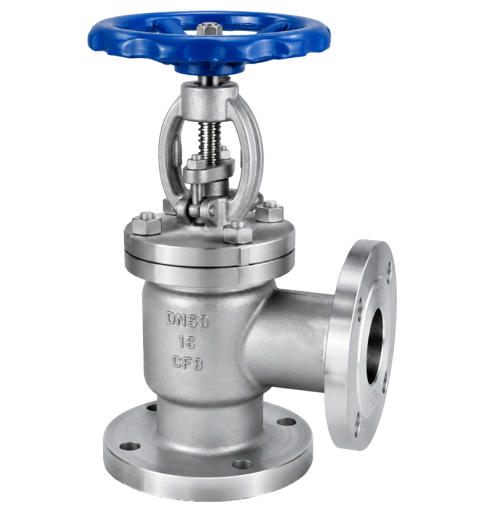

Angle Globe Valve is designed for precise flow regulation and efficient shut-off in piping systems where a 90-degree change in flow direction is required. Combining the functions of a globe valve and an elbow, it minimizes pipeline fittings while reducing pressure loss and installation space.
Specification of Angle Globe Valve
Specification Item Details/Values
Size Range 1/2"–12" (DN15–DN300)
Pressure Rating Class 150-Class 300 / PN... morehttps://www.savvyflowtech.com/products/angle-globe-valve/
Angle Globe Valve is designed for precise flow regulation and efficient shut-off in piping systems where a 90-degree change in flow direction is required. Combining the functions of a globe valve and an elbow, it minimizes pipeline fittings while reducing pressure loss and installation space.
Specification of Angle Globe Valve
Specification Item Details/Values
Size Range 1/2"–12" (DN15–DN300)
Pressure Rating Class 150-Class 300 / PN6–PN40
Body Materials ASTM A216 WCB, A105, A217 WC6/WC9, A351 CF8, CF8M, CF3, CF3M, Duplex Stainless Steel, Alloy Steel
Bonnet Type Bolted Bonnet, Pressure Seal Bonnet
Disc Type Plug Disc, Regulating Disc, Hard-Faced Disc
Stem Rising Stem, Precision Machined
Seat Material Integral Seat, Renewable Seat Ring, Stellite Overlay (Optional)
End Connection Flanged, Butt Weld, Socket Weld, Threaded
Face-to-Face Standard ASME B16.10 / Manufacturer Standard
Flange Standard ASME B16.5, ASME B16.47, EN 1092-1
Butt Weld Standard ASME B16.25
Inspection & Testing API 598, ISO 5208
Design Standard API 623, BS 1873, ASME B16.34
Fire Safe Design Available upon request
Operating Temperature -160°C to 595°C (Material Dependent)
Applicable Medium Water, Steam, Oil, Gas, Chemical Fluids, Thermal Oil
Operation Handwheel, Gear Operator, Pneumatic Actuator, Electric Actuator
Optional Features Locking Device, Position Indicator, Extended Bonnet, Cryogenic Service, Special Trim Materials
Applications Oil & Gas, Petrochemical, Power Plants, Refineries, LNG, Chemical Processing, Industrial Pipelines
Features of Angle Globe Valve
Integrated 90° Flow Path Design
Combines a globe valve and a 90-degree elbow into one unit, eliminating the need for an additional pipe fitting and reducing installation complexity.
Reduced Pipeline Space Requirements
The angle body design enables compact piping layouts, making it ideal for installations with limited space or directional changes.
Lower Pressure Loss Than Elbow + Globe Valve Assemblies
By integrating the change in flow direction within the valve body, the Angle Globe Valve minimizes turbulence and pressure drop compared with separate elbow and globe valve combinations.
Ideal for Bottom Drain and Blowdown Service
Commonly used for boiler blowdown, drain lines, sampling systems, and vessel discharge applications where fluid must change direction while maintaining precise shut-off.
Efficient Drainage Performance
The angled outlet promotes smoother media discharge, helping to reduce fluid retention and improve drainage efficiency after shutdown.
Fewer Leak Points
Replacing a separate elbow and valve with a single integrated body reduces flange or welded joints, lowering the risk of external leakage and simplifying maintenance.
Improved Resistance to Flow-Induced Erosion
The optimized angle-flow configuration directs high-velocity media more effectively, reducing localized erosion in demanding service conditions.
Suitable for High-Velocity Steam and Liquid Applications
Designed to handle high-pressure steam, condensate, boiler feedwater, and other process fluids where directional flow control is required.
Simplified Piping Installation
Fewer piping components reduce installation time, material costs, and overall system weight while improving piping reliability.
Optimized for Precise Flow Control at Direction Changes
Maintains the excellent throttling performance of a globe valve while efficiently accommodating a 90-degree change in flow direction, making it ideal for process control applications.
#high #pressure #steam #gate #valves
https://www.savvyflowtech.com/products/alloy-steel-pipe.html
Savvy Import & Export Co., Ltd. was established in 2009 and is an important industrial collaboration and supply chain service platform under Xintai Valve Group. The company has long been engaged in valve trading and fluid control product supply, committed to building a multi-brand collaborative one-stop valve supply chain solution system.
Relying on the group's industrial foundation and years of industry experience, the company inte... morehttps://www.savvyflowtech.com/products/alloy-steel-pipe.html
Savvy Import & Export Co., Ltd. was established in 2009 and is an important industrial collaboration and supply chain service platform under Xintai Valve Group. The company has long been engaged in valve trading and fluid control product supply, committed to building a multi-brand collaborative one-stop valve supply chain solution system.
Relying on the group's industrial foundation and years of industry experience, the company integrates China's well-established manufacturing supply chain system while coordinating global manufacturing resources and technical capabilities to provide customers with systematic supply services covering valves, actuators, pipeline fittings, and sealing products.
Through engineering technical support, quality control systems, and comprehensive logistics delivery capabilities, Savvy continuously improves procurement efficiency and supply stability, striving to become a key partner connecting high-quality valve resources with end-use markets.
#valve #stem #metal
https://www.savvyflowtech.com/products/actuators/

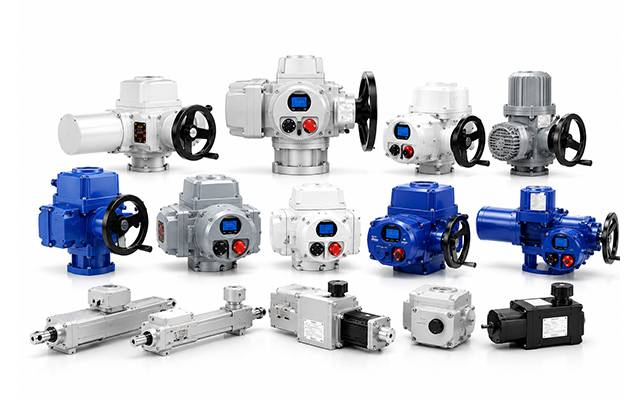

Actuators are devices used to automatically operate valves by converting energy into mechanical motion. They can be electric, pneumatic, hydraulic, or gears, and are designed to open, close, or regulate valve positions with high precision. Actuators improve operational efficiency, ensure process safety, and enable remote and intelligent flow control in modern pipeline applications.
All Types of Actuators
Electric Actuators
Pneumatic Actuators... morehttps://www.savvyflowtech.com/products/actuators/
Actuators are devices used to automatically operate valves by converting energy into mechanical motion. They can be electric, pneumatic, hydraulic, or gears, and are designed to open, close, or regulate valve positions with high precision. Actuators improve operational efficiency, ensure process safety, and enable remote and intelligent flow control in modern pipeline applications.
All Types of Actuators
Electric Actuators
Pneumatic Actuators
Hydraulic Actuators
Gears
Electric Actuators
Convert electrical energy into precise valve motion control.
Pneumatic Actuators
Hydraulic Actuators
ONE-STOP ACTUATOR SUPPLY SOLUTIONS FOR GLOBAL PROJECTS
Provide integrated sourcing of electric, pneumatic, and hydraulic actuators for global industrial projects
Ensure stable quality consistency through strict manufacturing control, inspection, and full material traceability
Support international standards such as ISO, CE, and project-specific engineering requirements
Offer technical support for actuator selection, torque matching, and valve automation integration
Reduce procurement complexity by consolidating multiple actuator types under one reliable supplier
Improve project efficiency with coordinated production planning and on-time global delivery
Support EPC contractors with customized actuator solutions for large-scale engineering projects
Hot Selling Actuators in SAVVY
FAQs of Actuators Supply Chain
How does quality control impact actuator supply consistency?
Strict inspection, torque testing, pressure testing, and traceability systems ensure stable quality and reduce rework or shipment delays.
What affects actuator supply chain lead time in industrial projects?
Actuator supply chain lead time depends on raw material availability, production capacity, customization requirements, testing procedures, and international logistics conditions. For EPC and industrial projects, complex specifications may also extend delivery cycles.
How does an actuator work with a valve?
An actuator connects to a valve and drives its opening or closing by rotating or linear motion. It enables automated flow control without manual operation.
How do I choose the right actuator for my application?
Key selection factors include torque requirements, operating pressure, valve type, control method, environmental conditions, and safety requirements.
Do actuators require regular maintenance?
Yes, regular inspection, lubrication (if required), and performance testing help ensure long service life and reliable operation in industrial environments.
#3 #position #valve #actuator
https://www.savvyflowtech.com/products/90-degree-elbow.html
Savvy Import & Export Co., Ltd. was established in 2009 and is an important industrial collaboration and supply chain service platform under Xintai Valve Group. The company has long been engaged in valve trading and fluid control product supply, committed to building a multi-brand collaborative one-stop valve supply chain solution system.
Relying on the group's industrial foundation and years of industry experience, the company integ... morehttps://www.savvyflowtech.com/products/90-degree-elbow.html
Savvy Import & Export Co., Ltd. was established in 2009 and is an important industrial collaboration and supply chain service platform under Xintai Valve Group. The company has long been engaged in valve trading and fluid control product supply, committed to building a multi-brand collaborative one-stop valve supply chain solution system.
Relying on the group's industrial foundation and years of industry experience, the company integrates China's well-established manufacturing supply chain system while coordinating global manufacturing resources and technical capabilities to provide customers with systematic supply services covering valves, actuators, pipeline fittings, and sealing products.
Through engineering technical support, quality control systems, and comprehensive logistics delivery capabilities, Savvy continuously improves procurement efficiency and supply stability, striving to become a key partner connecting high-quality valve resources with end-use markets.
#pipe #fittings #elbow
https://www.savvyflowtech.com/products/45-degree-elbow.html
Savvy Import & Export Co., Ltd. was established in 2009 and is an important industrial collaboration and supply chain service platform under Xintai Valve Group. The company has long been engaged in valve trading and fluid control product supply, committed to building a multi-brand collaborative one-stop valve supply chain solution system.
Relying on the group's industrial foundation and years of industry experience, the company integr... morehttps://www.savvyflowtech.com/products/45-degree-elbow.html
Savvy Import & Export Co., Ltd. was established in 2009 and is an important industrial collaboration and supply chain service platform under Xintai Valve Group. The company has long been engaged in valve trading and fluid control product supply, committed to building a multi-brand collaborative one-stop valve supply chain solution system.
Relying on the group's industrial foundation and years of industry experience, the company integrates China's well-established manufacturing supply chain system while coordinating global manufacturing resources and technical capabilities to provide customers with systematic supply services covering valves, actuators, pipeline fittings, and sealing products.
Through engineering technical support, quality control systems, and comprehensive logistics delivery capabilities, Savvy continuously improves procurement efficiency and supply stability, striving to become a key partner connecting high-quality valve resources with end-use markets.
#45 #degree #elbow #center
https://www.savvyflowtech.com/products/3-piece-ball-valve/
3 Piece Ball Valve is a high-performance industrial valve designed with a three-piece body construction, allowing in-line maintenance and easy replacement of seals and internal components without removing the pipeline. It features a full bore or reduced bore design for optimal flow efficiency and low pressure drop. The valve operates with a quarter-turn mechanism for fast and reliable shut-off. Equipped with PTFE or metal-seated sealing... morehttps://www.savvyflowtech.com/products/3-piece-ball-valve/
3 Piece Ball Valve is a high-performance industrial valve designed with a three-piece body construction, allowing in-line maintenance and easy replacement of seals and internal components without removing the pipeline. It features a full bore or reduced bore design for optimal flow efficiency and low pressure drop. The valve operates with a quarter-turn mechanism for fast and reliable shut-off. Equipped with PTFE or metal-seated sealing, it ensures excellent bi-directional sealing performance, high durability, and resistance to pressure and temperature. Widely used in oil & gas, chemical, petrochemical, and industrial process systems, it delivers long service life and dependable flow control under demanding conditions.
Specification of 3 Piece Ball Valve
Parameter Value
Design Three-Piece Bolted Body
Size Range 1/2" – 12" (DN15–DN300)
Pressure Rating Class 150, 300, 600, 900, 1500, 2500
Design Standard API 608, API 6D, ASME B16.34
Face-to-Face ASME B16.10
Flange Standard ASME B16.5, EN 1092-1
Thread Standard NPT (ASME B1.20.1), BSPT, BSPP
Butt Weld Ends ASME B16.25
Socket Weld Ends ASME B16.11
Fire Safe Design API 607 / API 6FA (Optional)
Anti-Static Device Standard / Optional
Blowout-Proof Stem Yes
Valve Type Floating / Trunnion
Port Type Full Port / Reduced Port
Seat Material PTFE, RPTFE, PEEK, Devlon, Metal Seat
Body Material ASTM A216 WCB, A105N, ASTM A351 CF8, CF8M, CF3M, Duplex SS
Ball Material SS304, SS316, Duplex Stainless Steel
Stem Material SS410, SS304, SS316, 17-4PH
Operation Lever, Gear Operator, Pneumatic Actuator, Electric Actuator
Temperature Range -196 ℃ to 425 ℃ (Depends on Seat Material)
Leakage Standard API 598, ISO 5208
Testing Standard API 598, API 6D
Applicable Medium Water, Oil, Gas, Steam, Chemical, LNG, Corrosive Fluids
Features & Advantages – 3 Piece Ball Valve
Three-piece split body design
Allows easy in-line maintenance, enabling quick replacement of seats, seals, and internal components without removing the valve from the pipeline.
Reduced downtime & maintenance cost
Modular construction significantly lowers maintenance time and operational shutdown costs, ideal for continuous process industries.
Full bore / reduced bore options
Ensures high flow capacity with minimal pressure drop in full bore design, improving system efficiency.
Superior sealing performance
Advanced PTFE, RPTFE, or metal seat options provide tight bi-directional sealing with zero-leakage performance under high pressure.
High pressure & temperature resistance
Engineered for demanding applications, suitable for Class 150–2500 and extreme temperature conditions depending on materials.
Blow-out proof stem design
Enhances operational safety by preventing stem ejection under internal pressure.
Fire-safe & anti-static optional design
Complies with API 607/API 6FA fire-safe standards and includes anti-static devices for hazardous environments.
Flexible actuation options
Compatible with lever, gear, pneumatic, and electric actuators for automated or manual control systems.
Wide industrial applicability
Widely used in oil & gas, petrochemical, chemical processing, power generation, water treatment, and general industrial pipelines.
#ball #valve #stem #replacement
https://www.savvyflowtech.com/products/2-piece-ball-valve/

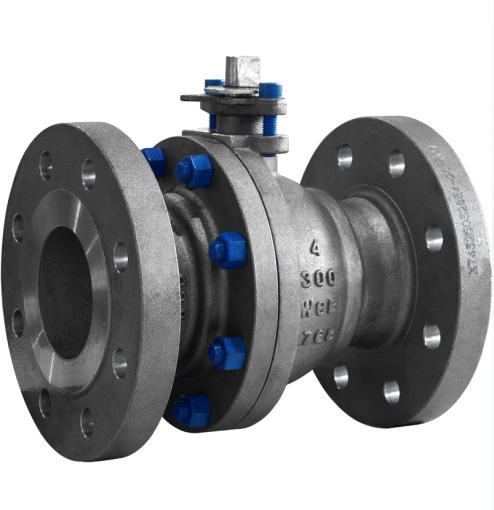

Designed for dependable isolation and long-term service, the 2 Piece Ball Valve delivers reliable shut-off performance across a wide range of industrial applications. Its compact two-piece body construction combines strength, ease of maintenance, and cost-effective operation, making it an ideal choice for demanding process systems. Available in carbon steel, stainless steel, duplex stainless steel, and other special alloys, the valve is... morehttps://www.savvyflowtech.com/products/2-piece-ball-valve/
Designed for dependable isolation and long-term service, the 2 Piece Ball Valve delivers reliable shut-off performance across a wide range of industrial applications. Its compact two-piece body construction combines strength, ease of maintenance, and cost-effective operation, making it an ideal choice for demanding process systems. Available in carbon steel, stainless steel, duplex stainless steel, and other special alloys, the valve is offered in full port or reduced port configurations with threaded, socket weld, butt weld, or flanged ends. Pressure ratings are available from Class 150 to Class 2500, with compliance to API 6D, API 608, ASME B16.34, and fire-safe standards upon request. Engineered for low operating torque, bubble-tight sealing, and extended service life, our 2 Piece Ball Valves are widely used in oil & gas, petrochemical, chemical processing, power generation, LNG, water treatment, and general industrial pipeline systems.
Specification of 2 Piece Ball Valve
Parameter Specification
Design Two-Piece Bolted Body
Size Range 1/2" – 12" (DN15–DN300)
Pressure Rating Class 150, 300, 600, 900, 1500, 2500
Design Standard API 608, API 6D, ASME B16.34
Face-to-Face ASME B16.10
Flange Standard ASME B16.5, EN 1092-1
Thread Standard NPT (ASME B1.20.1), BSPT, BSPP
Butt Weld Ends ASME B16.25
Socket Weld Ends ASME B16.11
Fire Safe Design API 607 / API 6FA (Optional)
Anti-Static Device Standard / Optional
Blowout-Proof Stem Yes
Valve Type Floating / Trunnion
Port Type Full Port / Reduced Port
Seat Material PTFE, RPTFE, PEEK, Devlon, Metal Seat
Body Material ASTM A216 WCB, A105N, ASTM A351 CF8, CF8M, CF3M, Duplex SS
Ball Material SS304, SS316, Duplex Stainless Steel
Stem Material SS410, SS304, SS316, 17-4PH
Operation Lever, Gear Operator, Pneumatic Actuator, Electric Actuator
Temperature Range -160 ℃ to 425 ℃ (Depends on Seat Material)
Leakage Standard API 598, ISO 5208
Testing Standard API 598, API 6D
Applicable Medium Water, Oil, Gas, Steam, Chemical, LNG, Corrosive Fluids
Features of 2 Piece Ball Valve Two-piece bolted body design
enables simplified maintenance and cost-effective repair.
Bidirectional sealing system ensures bubble-tight shut-off in both flow directions.
Quarter-turn operation (90°) provides fast and reliable on/off control with low operating torque.
Multiple end connections available, including threaded (NPT/BSP), flanged (RF/FF), and welded ends.
Locking handle option prevents accidental operation in critical industrial environments.
Excellent sealing performance with PTFE, RPTFE, or PPL seats ensures long-term leakage control.
Corrosion-resistant construction available in SS304, SS316, WCB, and duplex stainless steel.
Low operating torque design reduces actuator sizing and manual effort.
Wide pressure range coverage, suitable for PN16–PN40 and Class 150–300 applications.
Long service life design
optimized for repeated operation in oil & gas, petrochemical, chemical, and water treatment systems.
#flanged #relief #valve
