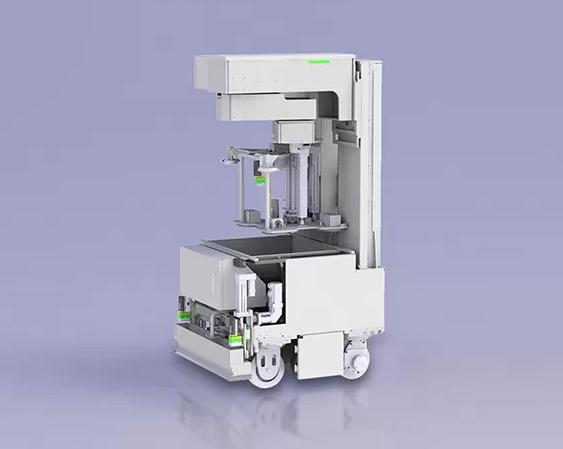

Suitable for tile installation in residential buildings, apartments, hotels, and office buildings, the tile paving robot delivers consistent precision and high-quality results.
One robot works with two workers: one for operation, one for material refilling
Suitable for tile installation in residential buildings, apartments, hotels, and office buildings, the tile paving robot delivers consistent precision and high-quality results.
One robot works with two workers: one for operation, one for material refilling
Tiling quality is superior to manual work; the robot focuses on large-area tiling while workers handle corners and edges; tiling efficiency reaches 80-120 tiles per day.
Four Core Advantages
Same-Direction Tiling— Leading Technology
Utilizes a same-direction pick-and-place method, where the robotic arm always moves in the same direction as the working surface. This eliminates the need for rotary arm movement, allowing the robot to operate efficiently in narrow spaces with strong adaptability.
01
Ultra-Compact Design — Flexible Operation
Ultra-Compact Design — Flexible Operation
Among the most compact in its class, with a width of less than 1000 mm and a depth of less than 800 mm. It can easily access most rooms and elevators that comply with building standards.
02
Millimeter-Level Visual Alignment — Precise Tile Placement with 40kg SCARA
Equipped with a vision adjustment system based on deep learning, the robot calculates the relative position between tiles in real time. This ensures grout joint errors stay within ±0.1 mm and flatness deviation within 1 mm.
03
Even Adhesive Application — Prevents Hollowing
An advanced control system using multi-sensor fusion enables precise control over the adhesive spread and pattern. This significantly reduces the risk of hollow tiles and creates optimal conditions for maintaining tile flatness.
04
Six Key Features
Superior Tiling Quality
Powered by a semi-supervised learning model trained on real-world construction data, the tile laying robot continuously optimizes tile-laying quality, coverage, and efficiency. With precise control, it ensures grout joint accuracy within ±0.1 mm and flatness deviation within 1 mm, meeting the highest construction standards. By focusing on large-area tiling while minimizing manual intervention, this tile laying robot significantly improves productivity and consistency on site.
Sufficient Coverage Capability
With the most compact footprint among similar products and a same-direction tile gripping and laying system, the robotic arm operates without rotational motion, enabling work in narrow spaces and achieving excellent coverage.
High Tiling Efficiency
Specialized in large-area tiling, the robot can lay 80–120 standard tiles per day (approximately 5 tiles every 10 minutes). A single unit achieves the daily output equivalent to 6–8 skilled workers.
High Safety
Since deployment, there have been zero safety incidents. The robot is equipped with both active and passive safety systems, providing dual-layer protection for worry-free operation.
Ease to Use
Operated via a tablet with one-click control, no coding skills are required. Ordinary workers can independently run the robot after basic training.
Low Failure Rate
The robot is built for stable, durable performance with minimal maintenance required.
