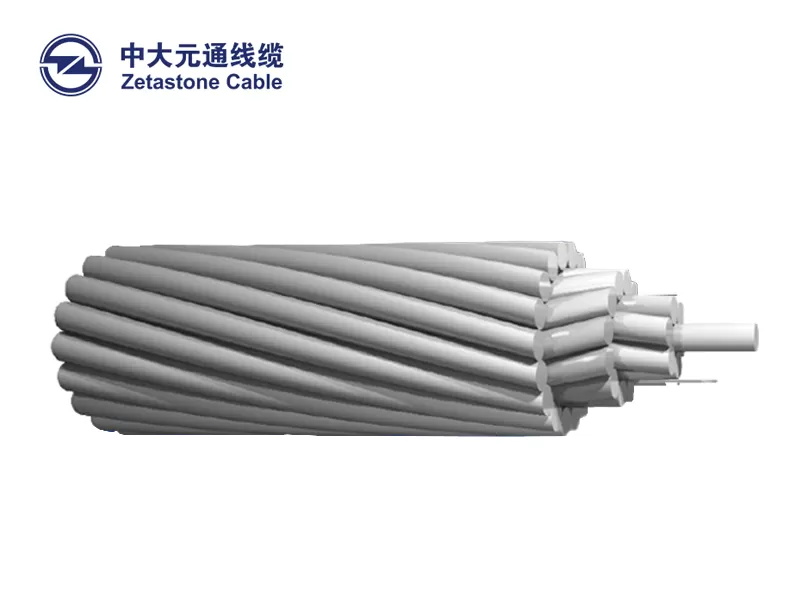

Conductor construction：concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core.
Conductor applications：ACSR Conductor are used for river crossings, overhead ground wires, installations involving extra long spans etc.
Conductor construction：concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core.
Conductor applications：ACSR Conductor are used for river crossings, overhead ground wires, installations involving extra long spans etc.
ACSR Aluminum Conductor Steel Reinforced Details
What is ACSR Conductor?
ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminum. ACSR Conductor is available in a wide range of steel, containing carbon from 0.5% to 0.85 %. The higher strength ACSR Conductor are used for river crossings, overhead ground wires, installations involving extra long spans etc. Against any given resistance of conductor, ACSR may be manufactured for having a wide range of tensile strength as per requirement. The principal advantage of these conductors are high tensile strength so that they are used for longer spans with less supports. Due to the greater diameter of ACSR Conductor a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage Overhead lines.
Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.
ACSR Conductor Features
Has better conduct performance, excellent tensile
strength and good mechanic property.
Long life service time, safe and reliable, easy maintenance
#aluminum#conductor#alloy#reinforced

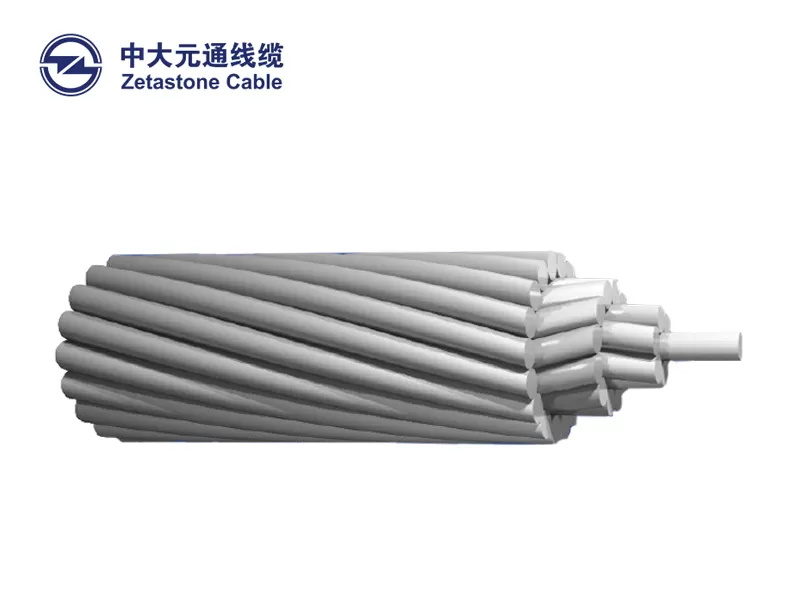

Conductor construction：ACAR concentric-lay-stranded conductors in single and multi-layer conductor,made from round aluminum1350-H19 (extra hard) wires and round aluminum 6201-T81 wires.
Conductor applications：The current carrying capacity for transmission and distribution projects for which AAC Conductors do not provide the required strength and AAAC or ACSR conductors are either not required or suitable.
Conductor features：ACAR has no hysteresis losses,no electrochemical reaction and lower power trans resistance.
What Is ACAR Conductor?
ACAR concentric-lay-stranded conductors in single and multi-layer conductor designs to optimize the strength and the current carrying capacity for transmission and distribution projects for which AAC conductors do not provide the required strength and AAAC or ACSR conductors are either not required or suitable.
ACAR Conductor Construction
ACAR is a concentric-laystranded conductor made from round aluminum 1350-H19 (extra hard) wires and round aluminum 6201-T81 wires. ACAR conductors are available in single and multi-layer constructions. These choices provide the necessary strength and the current carrying capacity for given applications. For equal weight, ACAR conductors offer higher strength and ampacity than ACSR conductors.
ACAR-Aluminum Conductor Alloy Reinforced Details
ACAR Conductor Features
Conductor has no hysteresis losses
No electrochemical reaction
Lower power trans resistance
