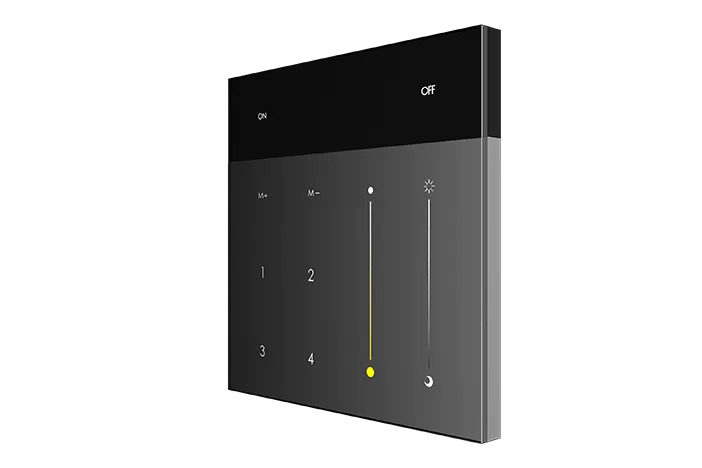

AS3539 86mm 2.4GHz Wall Panel Remote for Cabinet Lighting
The ARTCILUX AS3539 is a battery-powered 2.4GHz RF wall panel sender designed to control compatible single-color and tunable-white CCT cabinet lighting receivers. Its slim 86 × 86 × 12 mm format provides a fixed wall-control point for kitchens, wardrobes, display cabinets and custom furniture lighting systems. Four independent control keys allow users to manage lighting functions without additional signal wiring.
2.4GHz GFSK wireless transmission
Compatible with single-color and CCT lighting control
Four independent control keys
CR2450 battery-powered installation
Slim 86 × 86 × 12 mm wall panel
AS3539 Wireless Wall Panel Remote Overview
AS3539 wireless wall panel remote is a battery-powered 2.4GHz RF sender designed for convenient control of compatible single-color and dual-color-temperature cabinet lighting systems. Instead of connecting directly to the LED fixtures, the panel transmits wireless control commands to a paired receiver installed within the low-voltage lighting system.
With a compact 86 × 86 × 12 mm design, the AS3539 provides a clean, fixed wall-mounted control point for kitchens, wardrobes, display cabinets, shelving units and custom furniture installations. Its four independent control keys allow users to manage separate lighting functions or zones, depending on the configuration of the compatible receiver.
The panel operates with a CR2450 battery and uses 2.4GHz GFSK wireless communication, reducing the need for additional control wiring between the wall panel and the cabinet lighting receiver. This makes it suitable for both new furniture production and lighting upgrades where flexible installation is required.
For a complete cabinet lighting system, the AS3539 should be paired with a compatible ARTCILUX receiver, LED power supply and single-color or CCT lighting fixtures. Receiver compatibility and available control functions should be confirmed according to the selected system configuration.
Key Functions and Lighting Control
The AS3539 provides wireless control for compatible single-color and dual-color-temperature cabinet lighting systems. Its actual control functions depend on the paired receiver and the configuration of the complete lighting system.
Function Description
Wireless On/Off Control Turns the paired cabinet lighting circuit on or off through a 2.4GHz wireless signal.
Brightness Adjustment Supports smooth brightness control when the panel is paired with a compatible dimming receiver.
Color Temperature Control Adjusts the light from warm white to cool white when used with a compatible CCT receiver and dual-color LED fixture.
Independent Key Control Four control keys provide convenient operation of assigned lighting functions or zones, depending on the receiver setup.
Wireless Signal Transmission Sends control commands to the receiver without requiring a signal cable between the wall panel and the cabinet lighting system.
The wall panel acts as a wireless sender rather than a direct power switch. The compatible receiver processes the command and controls the connected LED lights, while the 12V or 24V power supply provides power to the lighting system.
This control structure allows the AS3539 to be integrated into kitchen cabinets, wardrobes, shelving, display furniture and custom millwork projects. It provides a fixed wall-mounted control point while keeping the driver, receiver and wiring concealed inside the furniture or cabinet structure.
For multi-zone, dimming or tunable-white applications, the receiver model, LED fixture type and pairing configuration should be confirmed before installation.
How the AS3539 Works in a Cabinet Lighting System
Power Connection:
AC Power → 12V/24V LED Power Supply → Compatible Receiver → Cabinet LED Lights
Wireless Control:
AS3539 Wall Panel → 2.4GHz Wireless Signal → Compatible Receiver
The AS3539 does not directly supply power to the LED lights. It sends wireless control commands to a compatible receiver installed between the low-voltage power supply and the cabinet lighting fixtures.
When the user operates the wall panel, the receiver processes the signal and controls the connected lights, including on/off, dimming or CCT adjustment, depending on the receiver and LED configuration.
Compatible ARTCILUX Receivers
The AS3539 wall panel must be paired with a compatible ARTCILUX receiver to control the connected cabinet lights. The receiver interprets the 2.4GHz wireless commands from the panel and manages switching, dimming or color-temperature adjustment according to the selected lighting configuration.
Receiver compatibility with the AS3539 must be confirmed before ordering. Products using the same 2.4GHz frequency are not necessarily compatible because pairing protocols, channels and control functions may differ.
For a reliable system configuration, please provide the LED light type, operating voltage, total load and required control functions when requesting a quotation. ARTCILUX can help match the wall panel, receiver, power supply and cabinet lighting fixtures as a complete system.
