Three way ball valves can either have the L-pattern or the T-pattern. The three way ball valve emerges as a critical solution for directing flow across multiple pathways. Renowned for its adaptability, the three way valve is available in various materials to cater to diverse industry needs. For environments requiring corrosion resistance and lightweight construction, the 3 way PVC ball valve is a... more3 Way Ball Valve L-Port https://www.kftevalves.com/products/3-way-ball-valve-l-port/ #port#valve
Three way ball valves can either have the L-pattern or the T-pattern. The three way ball valve emerges as a critical solution for directing flow across multiple pathways. Renowned for its adaptability, the three way valve is available in various materials to cater to diverse industry needs. For environments requiring corrosion resistance and lightweight construction, the 3 way PVC ball valve is an ideal choice, offering durability and ease of installation. Conversely, the 3 way SS ball valve, crafted from stainless steel, provides superior strength and resistance to high-pressure conditions, making it suitable for demanding industrial applications. Three way ball valves are instrumental in optimizing processes in sectors such as chemical manufacturing, water treatment, and oil and gas, where precise flow control is paramount.
Features & Technical Data for 3 Way Ball Valve L-Port
Features:
Positive alignment of body.
Blow-out proof stem for safety.
Sphericity tolerance of the ball is unsurpassed.
Multiple layers of adjustable PTFE chevron packing rings for standard model enable excellent fugitive emission control.
Positive position indication.
Locking device capable.
Heavy duty body construction.
Machined ISO 5211 top mounting flange.
Live load springs keep constant force on stem-seal packing, ensuring seal integrity and extended valve life.
Dual shaft bearings for high cycle life operation.
Higher Cv values and less cost for diverting which can be normally done with multiple installation of valves.
Machined firesafe lip for metal touch to ball in case of fire. It also eliminates possibility of seat deformation.
Lower operating torque, easing operation and reducing actuator cost.
Technical Data:
Full bore: DN 40 - 350 (NPS 1½ - 14)
Reduced bore: DN 125 - 350 (NPS 5 - 14)
Pressure rating: ASME Class 150, 300, 600 JIS 10K, 20K, 40K
Temperature: -29°C to 270°C (-20°F - 518°F) (Option: up to 500°C/932°F)
A 3-way plug valve is a type of valve used to control the flow of fluids (liquids or gases) in a piping system. It features three ports, which can be arranged in various configurations to allow for different flow paths.
Flow Path Of 3 Way Ball Valve
Basic Structure of a 3-Way Ball Valve
A 3-way plug valve is a type of valve used to control the flow of fluids (liquids or gases) in a piping system. It features three ports, which can be arranged in various configurations to allow for different flow paths.
Flow Path Of 3 Way Ball Valve
Basic Structure of a 3-Way Ball Valve

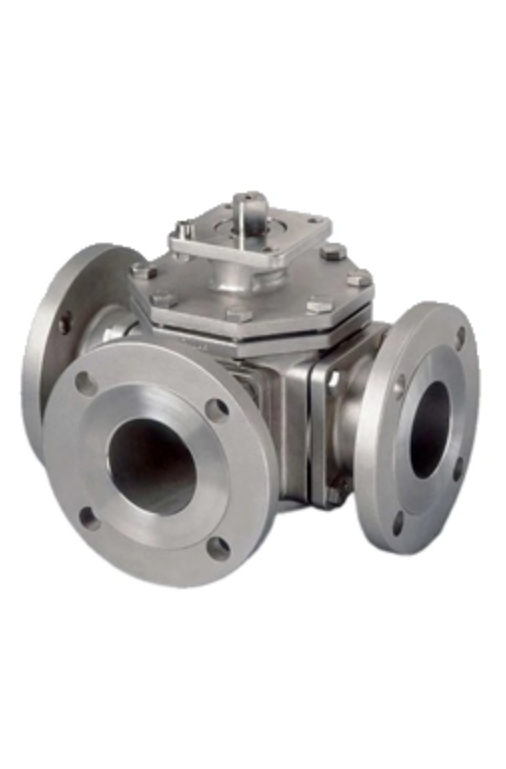

A 3-way ball valve has three ports (inlets/outlets) and a hollow, rotating ball with a bore (channel) that directs flow between the ports. The ball’s rotation angle determines the flow path.
Port Labels: Typically labeled Port A, Port B, and Port C.
Handle Positions: Flow paths change based on the handle’s rotation (e.g., 90° or 180°).
Key Flow Path Configurations
There are two main types of 3-way ball valves, defined by their bore design:
1. L-Port (L-Bore) Configuration
The ball has an L-shaped bore that connects two ports at a time.
Flow Patterns:
Mixing Flow: Combines two incoming streams into one outlet (e.g., Port A + Port B → Port C).
Diverting Flow: Directs one inlet stream to either of two outlets (e.g., Port A → Port B or Port A → Port C).
Handle Rotation:
90° rotation switches between diverting paths.
2. T-Port (T-Bore) Configuration
The ball has a T-shaped bore, allowing flow to split or merge across all three ports.
Flow Patterns:
Splitting Flow: Divides one inlet stream into two outlets (e.g., Port A → Port B + Port C).
Diverting Flow: Similar to L-Port but can connect all three ports in certain positions.
Handle Rotation:
180° rotation enables switching between splitting and diverting modes.
Selection Tips
1. Choose L-Port for mixing or diverting between two streams.
2. Choose T-Port for splitting flow or complex multi-port routing.
3. Verify pressure ratings and material compatibility (e.g., PTFE seats for chemicals).
Functions of a 3-Way Ball Valve
Core Functions of a 3-Way Ball Valve
A 3-way ball valve is designed to manage flow between three ports (inlets/outlets) by rotating its internal ball. Its key functions include:
1. Flow Diversion
Redirects fluid from one inlet to two outlets (or vice versa).
Example: Switching flow between two storage tanks or process lines.
Common in HVAC systems to alternate between heating and cooling circuits.
2. Flow Mixing
Combines two incoming streams into one outlet.
Example: Blending hot and cold water for temperature control.
3. Flow Shutoff
Blocks flow through specific ports in certain positions.
Example: Isolating a section of a pipeline for maintenance.
4. Bypass Control
Creates a bypass loop to reroute fluid around equipment (e.g., pumps, filters).
Example: Maintaining system pressure during filter servicing.
Advantages of 3-Way Ball Valves
1. Versatility: Handles mixing, diverting, and shutoff in a single valve.
2. Compact Design: Replaces multiple valves in complex systems.
3. Low Maintenance: Robust construction with minimal leakage risk.
Selection Guide
1. Choose L-Port for simple diverting/mixing (e.g., HVAC, blending).
2. Choose T-Port for splitting flow or multi-port bypass (e.g., chemical distribution).
3. Material: Match wetted parts (e.g., stainless steel, PTFE seals) to fluid compatibility.
4. Pressure Rating: Ensure it meets system requirements (e.g., ANSI 150 to 600).
Introduction to the Power Station Industry

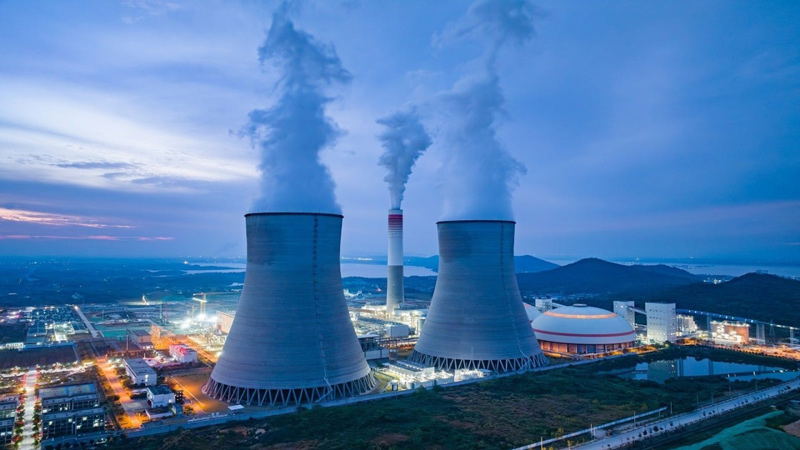

The power station industry is a cornerstone of modern infrastructure, responsible for generating electricity that fuels residential, commercial, and industrial activities. Power stations convert various primary energy sources into electrical power through diverse technologies, playing a pivotal role in global economic development and quality of life.
Introduction to the Power Station Industry
The power station industry is a cornerstone of modern infrastructure, responsible for generating electricity that fuels residential, commercial, and industrial activities. Power stations convert various primary energy sources into electrical power through diverse technologies, playing a pivotal role in global economic development and quality of life.
Types of Power Stations
Power stations are categorized by their energy sources:
Fossil Fuels: Coal, oil, and natural gas plants dominate historically, using combustion to produce steam that drives turbines. Natural gas, with lower emissions, is increasingly replacing coal.
Nuclear: Utilizes fission reactions to generate heat, producing steam for turbines. Known for high output but controversial due to safety and waste concerns.
Renewables: Hydroelectric (water flow), wind (turbines), solar (photovoltaic cells), geothermal (earth’s heat), and biomass (organic matter). These are growing rapidly due to sustainability goals.
Types of Valves in Power Stations
In the power station industry, various types of valves are employed to ensure efficient, safe, and reliable operation across different systems. Here's an organized overview of key valve types and their applications:
1. Gate Valve
Function: On/Off isolation with minimal pressure drop.
Applications: Main steam lines, feedwater systems, and high-pressure/temperature environments.
Features: Robust design for full open/close operation; not suitable for throttling.
2. Globe Valve
Function: Precise flow throttling and regulation.
Applications: Feedwater control, cooling systems, and steam bypass lines.
Variants: Angle and Y-pattern globe valves for specific spatial or flow requirements.
3. Ball Valve
Function: Quick shut-off with tight sealing.
Applications: Fuel lines (natural gas, oil), auxiliary systems, and chemical dosing.
Features: Low maintenance, suitable for high-pressure applications.

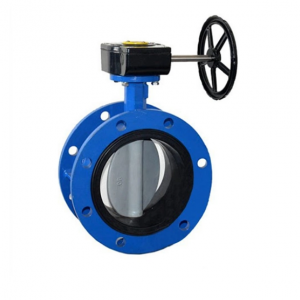

4. Butterfly Valve
Function: Flow regulation or isolation in large-diameter pipes.
Applications: Cooling water systems, condenser circuits, and hydroelectric penstocks.
Features: Compact, cost-effective, and efficient for low-pressure loss.
6. Knife Gate Valve
Function: Cut through viscous fluids.
Applications: Fuel oil, ash slurry, and thick sludge.
Features: Sharp-edged gate for sealing in heavy fluids.
7. Plug Valve
Function: On/Off or divert flow.
Applications: Fuel systems, alternative to ball valves.
Features: Cylindrical plug design; suitable for frequent operation.
Introduction to the Mining Industry

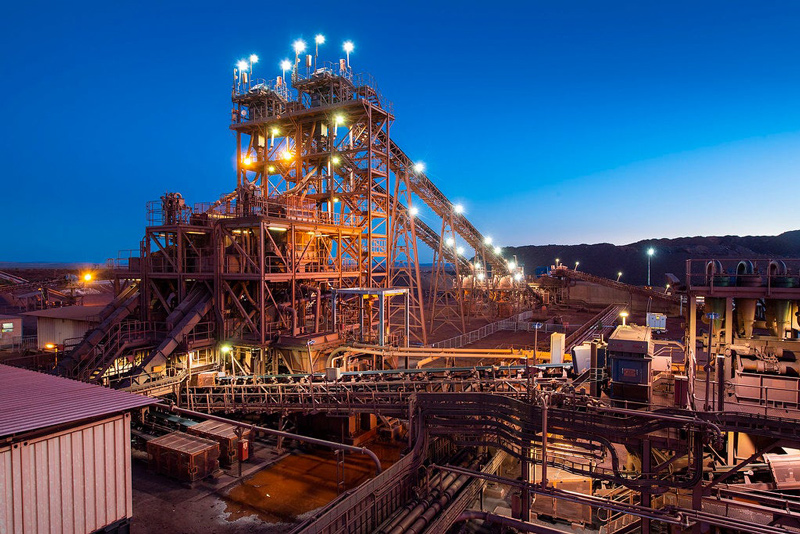

The mining industry is a global sector focused on extracting valuable geological materials from the Earth, including metals (e.g., gold, copper), industrial minerals (e.g., limestone, phosphate), and energy minerals (e.g., coal, uranium). It excludes petroleum, which falls under the oil and gas sector. Mining provides essential raw materials for construction, manufacturing, techn... moreMining Industry https://www.kftevalves.com/mining-industry.html #coal#valve
Introduction to the Mining Industry
The mining industry is a global sector focused on extracting valuable geological materials from the Earth, including metals (e.g., gold, copper), industrial minerals (e.g., limestone, phosphate), and energy minerals (e.g., coal, uranium). It excludes petroleum, which falls under the oil and gas sector. Mining provides essential raw materials for construction, manufacturing, technology, and energy production, forming the backbone of modern infrastructure and innovation.
Types of Mining
1. Surface Mining: Includes open-pit and strip mining, used for near-surface deposits.
2. Underground Mining: Accesses deeper resources via tunnels, common for coal and metals.
3. Placer Mining: Extracts minerals from sediment, often used for gold.
4.In-Situ Mining: Dissolves minerals in place, typically for uranium.
Valve Types in Mining Industry
1. Knife Gate Valves
Function: Designed to handle viscous fluids, slurries, and solids-laden media. Their sharp-edged gate cuts through thick or abrasive materials.
Features: Compact design for high-pressure and high-wear environments.
Applications: Slurry pipelines, wastewater systems, and heavy ore processing.
2. Slurry Valves
Function: Specialized for abrasive slurries, offering anti-scaling and anti-blocking properties.
Features: Spherical sealing surfaces for reliable line-contact sealing. Separable valve seat and body for easy maintenance.
Applications: Alumina processing, metallurgy, and mining slurry systems.
3. Ball Valves (Metal-Sealed)
Function: Tight shut-off in high-pressure or corrosive environments.
Features: Fire-safe designs (e.g., API 607/6FA certifications). Full-bore options for minimal flow restriction.
Applications: Gas lines, chemical dosing, and high-pressure ore transport.
4. Diaphragm Valves
Function: Isolate fluids from valve components to prevent contamination.
Features: PTFE or rubber diaphragms for chemical resistance. Maintenance-free operation in corrosive or hygienic processes.
Applications: Acid handling, polymer transport, and tailings management.
5. Pinch Valves
Function: Ideal for powders, granules, or highly abrasive media.
Features: Rubber sleeves that pinch to control flow, isolating mechanical parts from the fluid. Used in pneumatic conveying and chemical dosing systems.
6. Check Valves
Function: Prevent backflow in pipelines.
Types: Swing, lift, or dual-plate designs for slurry or high-pressure systems.
Applications: Pump discharge lines and reactor outlets.
Introduction to the Liquefied Natural Gas (LNG) Industry

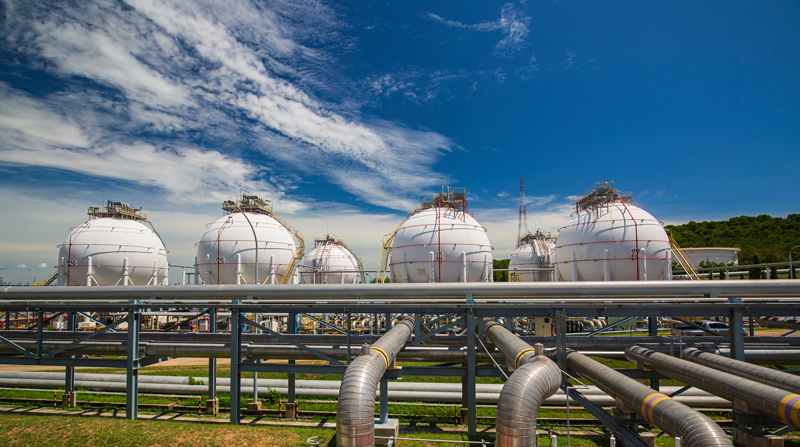

The liquefied natural gas (LNG) industry plays a pivotal role in the global energy landscape, bridging the gap between energy-rich regions and markets striving for sustainable growth. LNG is natural gas, primarily methane, cooled to -162°C, transforming it into a liquid state that reduces its volume by 600 times, enabling efficient long-distance transport via specialized carriers. Th... moreLNG https://www.kftevalves.com/lng.html #lng#valve
Introduction to the Liquefied Natural Gas (LNG) Industry
The liquefied natural gas (LNG) industry plays a pivotal role in the global energy landscape, bridging the gap between energy-rich regions and markets striving for sustainable growth. LNG is natural gas, primarily methane, cooled to -162°C, transforming it into a liquid state that reduces its volume by 600 times, enabling efficient long-distance transport via specialized carriers. This process, known as liquefaction, has revolutionized energy access, allowing countries without domestic reserves to secure reliable supplies, thus enhancing global energy security and diversification.
The Liquefied Natural Gas (LNG) Industry
Valve Types Used in the Liquefied Natural Gas (LNG) Industry
The LNG industry relies on specialized valves designed to handle extreme cryogenic temperatures (-162°C/-260°F), high pressures, and stringent safety requirements. Valves must ensure leak-tight performance, durability, and compliance with international standards. Below are the key valve types used in LNG applications:
1. Cryogenic Ball Valves
Function: Isolation and flow control.
Design: Full-bore design to minimize pressure drop; extended bonnet/stem to keep seals away from cryogenic temperatures.
Materials: Stainless steel (e.g., 316L), nickel alloys (e.g., Inconel), or duplex stainless steel for low-temperature toughness.
Applications: LNG storage tanks. Loading/unloading arms for LNG carriers. Pipeline isolation.
2. Cryogenic Gate Valves
Function: On/off isolation in high-pressure systems.
Design: Wedge or slab gate design; bellows seals to prevent fugitive emissions.
Materials: Stainless steel or low-temperature carbon steel.
Applications: LNG liquefaction plants. High-pressure gas pipelines.
3. Cryogenic Globe Valves
Function: Precise flow regulation and throttling.
Design: Plug or needle-type disc; extended stem for thermal insulation.
Materials: Stainless steel with graphite or PTFE packing.
Applications: LNG vaporization systems. Process control in liquefaction units.
5. Cryogenic Butterfly Valves
Function: Isolation and throttling in large-diameter pipelines.
Design: Triple-offset metal-seated design for zero leakage; fire-safe certification.
Materials: Stainless steel body with PTFE or graphite seals.
Applications: LNG tanker cargo systems. Regasification terminals.
6. Safety Relief Valves
Function: Overpressure protection.
Design: Spring-loaded or pilot-operated; calibrated for LNG’s low-temperature vaporization.
Materials: Stainless steel with cryogenic-compatible elastomers.
Applications: LNG storage tanks. Liquefaction and regasification units.
7. Control Valves
Function: Automated flow, pressure, or temperature regulation.
Design: Pneumatic or electric actuators; positioners for precision.
Materials: Stainless steel with cryogenic-grade trim.
Applications: LNG processing plants. Boil-off gas (BOG) management systems.
