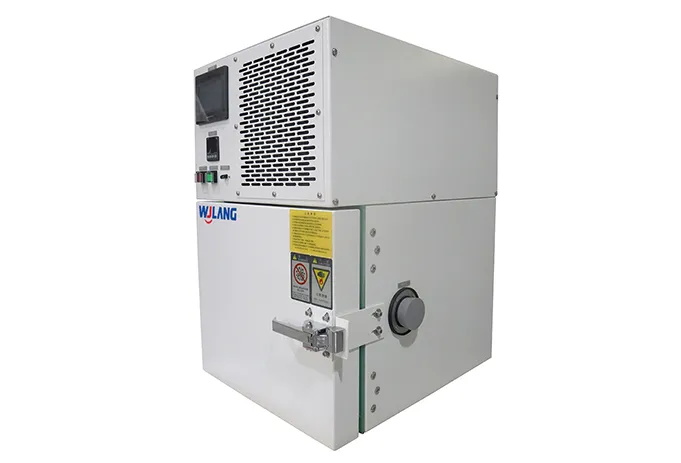

Mini Rapid-rate Thermal Cycle Chambers
https://www.wjlangtech.com/products/mini-rapid-rate-thermal-cycle-chambers/
#temperature #cycling #chamber
The maximum temperature change rate can reach up to 15°C/min, and users can choose between linear and non-linear temperature change modes according to their needs.
Features a compact design with a small footprint and high cost-effectiveness.
Utilizes air-cooled condensation, eliminating the need for cooling tower installation.
Energy-efficient d... moreMini Rapid-rate Thermal Cycle Chambers
https://www.wjlangtech.com/products/mini-rapid-rate-thermal-cycle-chambers/
#temperature #cycling #chamber
The maximum temperature change rate can reach up to 15°C/min, and users can choose between linear and non-linear temperature change modes according to their needs.
Features a compact design with a small footprint and high cost-effectiveness.
Utilizes air-cooled condensation, eliminating the need for cooling tower installation.
Energy-efficient design reduces equipment energy consumption, with easy installation and multiple safety protection features.
Suitable for research and development units, office buildings, and other departments with specific terrain requirements.
Specifications of Mini Rapid-rate Thermal Cycle Chambers
Mini Rapid-rate Thermal Cycle Chambers
WJLANG Industrial Ovens: Wide Temp Range & ±1-2℃ Uniformity
https://www.wjlangtech.com/products/industrial-oven/
#industrial #oven #types
The industrial oven features a wide temperature range design, covering from room temperature up to 200℃ or even higher, which meets the high-temperature requirements of special industries such as electronics, chemical engineering, and materials. In terms of temperature control, it adopts uniform temperature control, equipped with an air duct circulation sy... moreWJLANG Industrial Ovens: Wide Temp Range & ±1-2℃ Uniformity
https://www.wjlangtech.com/products/industrial-oven/
#industrial #oven #types
The industrial oven features a wide temperature range design, covering from room temperature up to 200℃ or even higher, which meets the high-temperature requirements of special industries such as electronics, chemical engineering, and materials. In terms of temperature control, it adopts uniform temperature control, equipped with an air duct circulation system and fan design to ensure the temperature uniformity inside the oven (with a deviation of ±1℃ to ±2℃), thus avoiding local overheating that may affect the products.
Different Industrial Oven Types
How Our Industrial Oven Works
Heat Source: The industrial oven provides heat through electric heating elements (resistance wires), gas (natural gas, liquefied gas), steam, or heat-conducting oil. Electric heating is the most common method, which converts electrical energy into thermal energy.
Temperature Control: The temperature control system (such as a PID controller) monitors the internal temperature in real-time and maintains the set temperature by adjusting the power of heating elements or gas flow, with an accuracy of ±1°C.

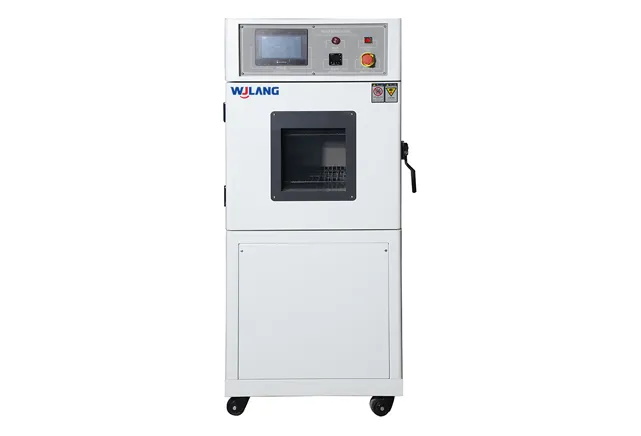

High Temperature Oven
https://www.wjlangtech.com/products/high-temperature-oven/
#high #temperature #industrial #oven
High temperature oven offers vertical/horizontal designs with PID+SSR control for precise temp regulation (≤1% uniformity), easy operation.
Premium insulation and intelligent PID boost energy efficiency.
They feature over-temperature/leakage protection, fan failure alarms, and optional explosion-proof config for flammables.
Customizable in dimensions, load, air volume f... moreHigh Temperature Oven
https://www.wjlangtech.com/products/high-temperature-oven/
#high #temperature #industrial #oven
High temperature oven offers vertical/horizontal designs with PID+SSR control for precise temp regulation (≤1% uniformity), easy operation.
Premium insulation and intelligent PID boost energy efficiency.
They feature over-temperature/leakage protection, fan failure alarms, and optional explosion-proof config for flammables.
Customizable in dimensions, load, air volume for large workpieces or assembly lines, suitable for electronic curing, battery drying, ceramic sintering, and lab research, with strong industry adaptability.
Specifications of High Temperature Oven
High Temperature Oven

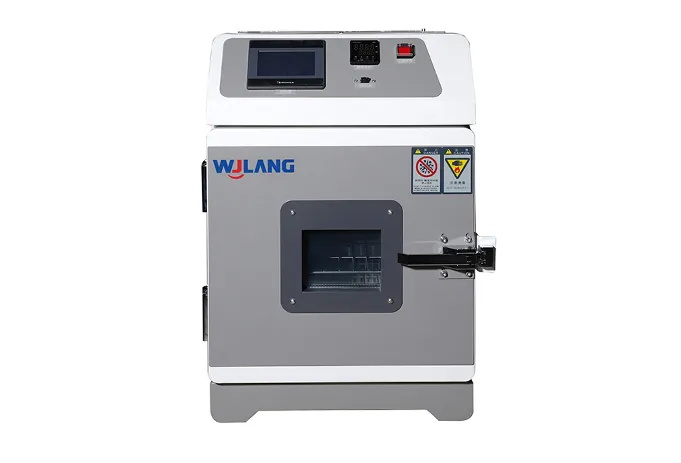

Bench-top Temperature Test Chamber
https://www.wjlangtech.com/products/bench-top-temperature-test-chamber/
#temperature #chamber #benchtop
Vertical or horizontal structure,compact design, small size, fast heating and cooling.
The use of Chinese and English touch controller easy to operate a communication connection function (Rs485).
Door can be based on the work of testing needs to change the opening direction, the right place at the table directly online testing.
Suitable for R & D units... moreBench-top Temperature Test Chamber
https://www.wjlangtech.com/products/bench-top-temperature-test-chamber/
#temperature #chamber #benchtop
Vertical or horizontal structure,compact design, small size, fast heating and cooling.
The use of Chinese and English touch controller easy to operate a communication connection function (Rs485).
Door can be based on the work of testing needs to change the opening direction, the right place at the table directly online testing.
Suitable for R & D units，office buildings,production line production line testing of high and low temperature testing requirements.
Specifications of Bench-top Temperature Test Chamber
Bench-top Temperature Test Chamber
Bench-top Temperature Test Chamber

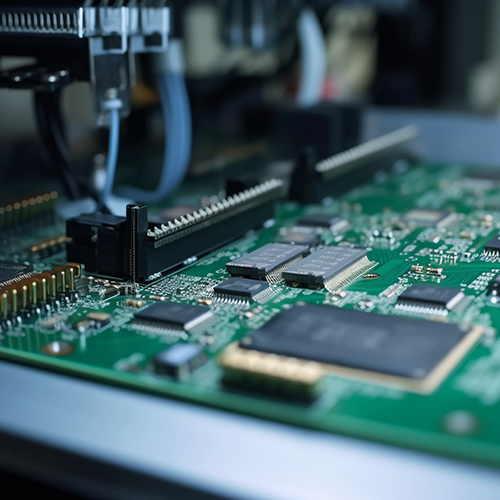

Environmental Testing Equipment in Electronics
https://www.wjlangtech.com/environmental-testing-equipment-in-electronics.html
#temperature #chamber #battery
The Application of Reliability Equipment in Electronic and Electrical Devices
The fundamental purpose of reliability testing is to simulate, within a laboratory environment, the various environmental stresses and usage conditions a product may encounter throughout its entire lifecycle.
By employing accelerated aging methods, potential... moreEnvironmental Testing Equipment in Electronics
https://www.wjlangtech.com/environmental-testing-equipment-in-electronics.html
#temperature #chamber #battery
The Application of Reliability Equipment in Electronic and Electrical Devices
The fundamental purpose of reliability testing is to simulate, within a laboratory environment, the various environmental stresses and usage conditions a product may encounter throughout its entire lifecycle.
By employing accelerated aging methods, potential defects and failures are exposed early, enabling improvements to ensure product quality, durability, and safety.
The following analysis is organized into several sections:
Why Do Electronic and Electrical Products Require Reliability Testing?
The reliability of electronic and electrical products—ranging from a single chip or charger to large appliances like refrigerators, air conditioners, and washing machines—directly impacts:
User Experience: Minimizing frequent failures to ensure stable functionality.
Brand Reputation: High reliability forms the foundation of brand credibility.
Safety compliance: Preventing accidents caused by overheating, short circuits, combustion, etc., while meeting mandatory regulations and certifications (e.g., China's CCC, EU's CE, US's UL).
Cost control: “Preventive measures” are far less costly than “post-failure repairs” and “mass recalls.”
Market competitiveness: Extended warranties and positive word-of-mouth serve as powerful competitive advantages.
Primary Types of Reliability Testing Equipment and Their Applications
With numerous types of reliability testing equipment, the following analysis focuses solely on Wujinglang's devices:
Environmental Reliability Testing Equipment
Simulates climatic conditions encountered during product storage, transportation, and use.
1. Temperature Chamber:
Function:
Simulates extreme cold, extreme heat, and high/low temperature cycling.
Applications:
High-Temperature Testing: Evaluates performance degradation, aging, and deformation of components, PCBs, and plastic casings under elevated temperatures. Low-temperature testing: Evaluates LCD display delays, sudden battery life drops, and material brittleness/cracking. Temperature cycling testing: Repeated thermal shocks assess solder joint cracking and poor contact caused by differing thermal expansion coefficients of materials (a common failure mode).
2. Constant Temperature and Humidity Chamber / Temperature-Humidity-Vibration Combined Chamber:
Function:
Simulates complex environments like high-temperature/high-humidity or low-temperature/low-humidity conditions. The triple-combination chamber simultaneously applies temperature, humidity, and vibration stresses for greater real-world accuracy.
Applications:
High-temperature/high-humidity testing: Accelerates oxidation and corrosion of metal components; evaluates PCB moisture absorption and insulation degradation (leakage). Dual 85 testing (85°C/85%RH) is an industry standard for rigorously assessing products' resistance to humid heat.
3. Thermal Shock Test Chamber:
Function:
Achieves instantaneous transitions between extreme high and low temperatures within minutes, delivering more severe impacts than temperature cycling.
Applications:
Specifically designed to evaluate product tolerance to abrupt temperature changes, posing rigorous challenges for components like chip packages, BGA solder joints, and ceramic capacitors.
Overview of Testing Procedures
Developing Test Plans: Determine required test items, conditions, and pass/fail criteria based on product specifications, target market regulations, and operating environments.
Sample Preparation: Select a specified number of samples (typically pre-production engineering prototypes).
Test Execution: Place samples in corresponding test equipment and apply stresses according to the plan.
Interim/Final Inspection: Conduct functional, performance, and visual checks during or after testing, documenting any anomalies or failures.
Data Analysis and Improvement: Analyze failure causes and provide feedback to design, procurement, or production departments for enhancements (e.g., material substitution, design modifications, process optimization).
Certification and Reporting: Upon successful testing, generate reports for certification purposes or as internal quality documentation.
Summary of Environmental Testing Equipment in Electronics
Reliability testing equipment serves as the “quality guardian” and “time machine” for the electronics and electrical industries. Through scientific methods, they “pre-simulate” potential issues that products might encounter over years within weeks or months in the laboratory.
This is not only a necessary step for compliance but also an indispensable core tool for enterprises to conduct forward-looking product development, enhance core competitiveness, and reduce market risks. Investing in reliability testing is fundamentally a critical investment in brand reputation and user safety.
